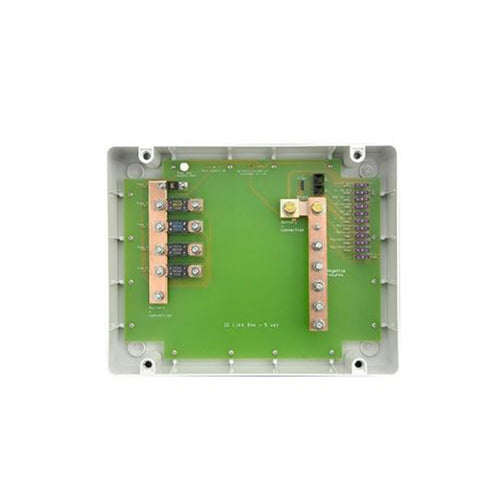

The Victron DC Link Box brings all the primary DC protection, DC monitoring and sensor connections into one simple to fit enclosure.
It includes: 4 Mega fuses (2x 300A, 1x 200A, 1x 100A) and 1 Midi fuse (60A).
These can be changed to suit the user's requirements.
Mega fuses are available in sizes from 100 to 500 amps and Midi fuses from 30 to 125 amps. 500 Amp shunt.
Test button with LEDs for all 5 fuses and a polarity warning LED.
Fused connection points for MultiPlus voltage sense and BMV-600 connections.
Fused connections for magnetically latching battery isolator which can be controlled via ESP system panel.
RJ 11 and 45 socket connections for ESP system panel.
