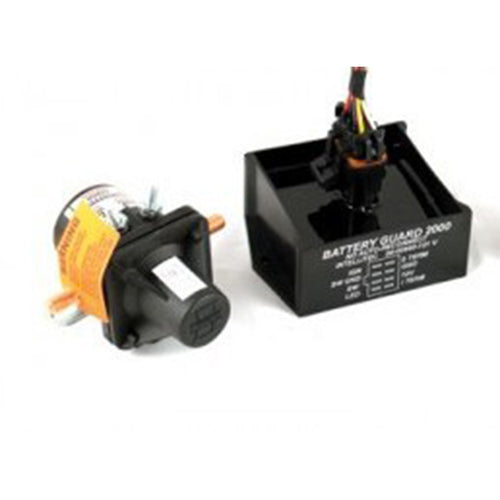

Intellitec Battery Guard 2000 100A with Round Switch 12V

Intellitec Battery Guard 2000 100A with Round Switch 12V

SKU: K218

Stock: In Stock

Brand: Intellitec

Regular price £216.42 Sale (£259.70 inc VAT)

  • 12 Volts
  • 100 Amps
  • Round Reset Switch
  • Guarantees Starting Power
  • Manual Battery Isolator
  • Fully Waterproof ECUSystem test on start
  • Delphi Packard IP 67
  • Waterproof Connectors
  • Ignition Protection
  • System test on start
  • Approved by Volvo, Paccar, Iveco, Scania, Dennis, MAN PLEASE NOTE - THE RELAY IS NOT WATERPROOF ENSURE FITTED IN SUITABLE IP RATED ENCLOSURE IF A WATERPROOF SOLUTION IS REQUIRED

Battery Guard 2000 constantly monitors the available battery power when the engine or charging system is off.
If the battery voltage drops below 12.1V a voltage sensitive timer is triggered within the ECU.
If the available battery voltage remains below 12.1V uniformly for a full 4 minutes, the ECU will pulse the Intellitec latching relay and the battery will be disconnected, to GUARANTEE STARTING POWER.
At this stage there will be no power at ignition, the vehicle operator must press the flashing reset switch and power to ignition is restored.
The operator can also manually disconnect the battery by pressing and holding the reset switch for 3 seconds.
