Battery Guard 2000 Module only 24V (non-auto reconnect)

Intellitec Battery Guard 2000 Module only 24V (non-auto reconnect)

SKU: 00-00660-243

Stock: In Stock

Brand: Intellitec

Regular price £114.79 Sale (£137.75 inc VAT)

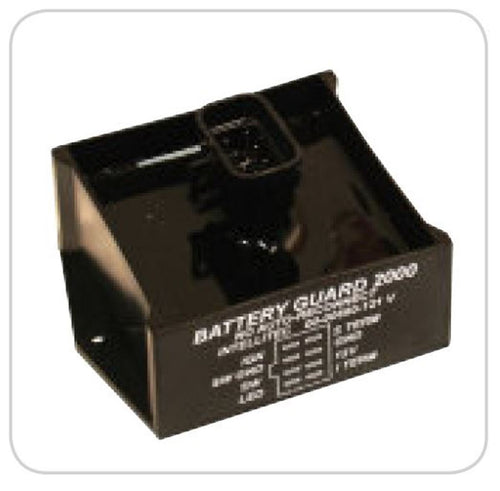

PLEASE NOTE IMAGE FOR ILLUSTRATION PURPOSES ONLY (Unit is yellow writing on black)

  • 24 Volts
  • Fully Waterproof ECU System test on start
  • Delphi Packard IP 67
  • Waterproof Connectors
  • Ignition Protection
  • System test on start
  • Approved by Volvo, Paccar, Iveco, Scania, Dennis, MAN
Battery Guard 2000 constantly monitors the available battery power when the engine or charging system is off.
If the battery voltage drops below 24.1V a voltage sensitive timer is triggered within the ECU.
If the available battery voltage remains below 24.1V uniformly for a full 4 minutes, the ECU will pulse the Intellitec latching relay and the battery will be disconnected to GUARANTEE STARTING POWER.
At this stage there will be no power at ignition, the vehicle operator must press the flashing reset switch and power to ignition is restored.
The operator can also manually disconnect the battery by pressing and holding the reset switch for 3 seconds.

PLEASE NOTE - THIS PRODUCT IS THE ECU ONLY, IF YOU NEED THE FULL KIT PLEASE ORDER K02 (100 AMP) OR K04 (200 AMP)
