Victron Energy Skylla-i 24/100(1+1) 230V

Victron Energy

Skylla-i 24/100(1+1) 230V

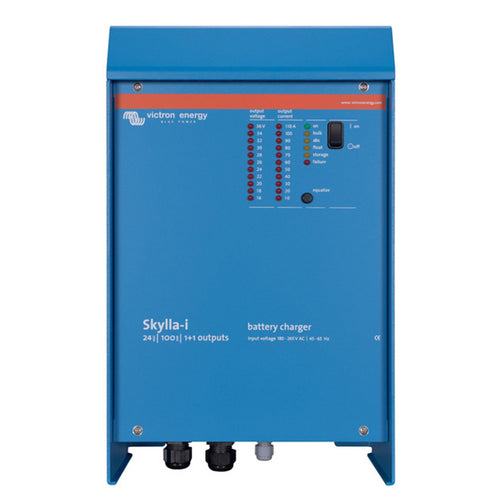

Victron Energy Skylla-i 24/100(1+1) 230V

RRP £1,269.00
Price: £1,110.38
(£1,332.46 inc. VAT)

Product Code: SKI024100000

Group Code: VE

A modern and powerful battery charger that withstands the rigors of an adverse environment: heat, humidity and salt air. The Skylla-i (1+1) features 2 isolated outputs. The second output, limited to approximately 4 A and with a slightly lower output voltage, is intended to top up a starter battery. Next to a CAN bus (NMEA2000) interface, a rotary switch, DIP switches and potentiometers are available to adapt the charge algorithm to a particular battery and its conditions of use. Several chargers can be synchronised with the CAN bus interface. This is achieved by simply interconnecting the chargers with RJ45 UTP-cables. When only shallow discharges occur the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged. If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Skylla-i will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached. The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. Every Skylla-i comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. In order to compensate for voltage loss due to cable resistance, the Skylla-i is provided with a voltage sense facility so that the battery always receives the correct charge voltage.

• 24V /80A (1+1) 230V • Skylla-i (1+1) features 2 isolated outputs • Rugged • Flexible • Synchronised parallel operation • Temperture sensor to increase battery life • The right amount of charge for a lead-acid battery: variable absorption time • BatterySafe mode: preventing damage due to excessive gassing • Storage mode: less maintenance and aging when the battery is not in use • NMEA2000 Canbus connection • PowerControl: set a maximum shore power • Remote Control • Li-ion (LiFePo4) ready • Suitable for AC and DC supply • Can be used as a power supply
