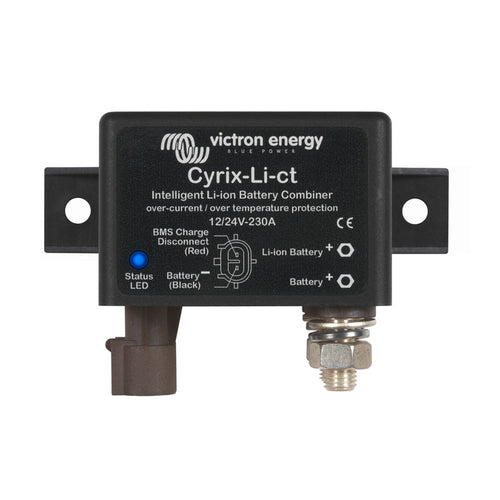

Victron Energy Cyrix-Li-ct 12/24V-230A intelligent Li-ion battery combiner

Victron Energy

Victron Energy Cyrix-Li-ct 12/24V-230A intelligent Li-ion battery combiner

RRP £151.00
Price: £132.13
(£158.56 inc. VAT)

Product Code: CYR010230412

Group Code: VE

The Cyrix-ct intelligent battery combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged.
The functionality of the Cyrix-Li-ct is analogous to the Cyrix-ct.
The Cyrix-Li-ct will parallel connect a lead acid starter battery and a LiFePO4 battery with 30 seconds delay: - if the Charge Disconnect output of the VE.Bus BMS is high, and - if it senses 13,7 V (resp. 27,4 V) or more on one of its power terminals.
The Cyrix will disengage immediately: - when its control output becomes free floating, signalling cell over voltage or cell over temperature, and/or - when battery voltage drops below 13,2 V.
Start assist function: a short positive pulse will close the relay during 30 seconds (see figure on page 2).
A built-in transient voltage suppressor will limit the voltage spike that may occur when the Cyrix suddenly disengages due to cell overvoltage or over temperature.

  • 12 and 24 Volts
  • 230 Amp
  • Parallel connects
  • Disengages immediately when control output changes
  • Start assist function
  • Built-in transient voltage suppressor
