Scafftech Project

Scafftech Project

Scafftech based in Moreton, on the Wirral. offer a full range of scaffolding solutions for all types of commercial and residential projects.

They needed a system which would charge multiple mains power tools in the back of the van. Robbie the MD started researching on line and came across Intellitec. Realising we were just down the road he contacted Intellitec and was invited over to see what we do, and also to discuss his project. Intellitec gathered all the information from Scafftech on their requirements and budgets. We agreed the spec quickly and set to work within a week.
  The power management system comprised of our latest Battery to Battery charger, a 110Ah battery and a 2000W pure sine wave inverter. To enhance the system it allowed the battery levels to be accessed remotely via Bluetooth connectivity or when the vehicle was parked at a dedicated WIfi location. If you would like Intellitec to provide a quote for a power management system, please do not hesitate to get in touch. Our professional and friendly team are on hand to help. Call 0151 482 8970 or email
         The following parts have been used on the Scafftech system:-

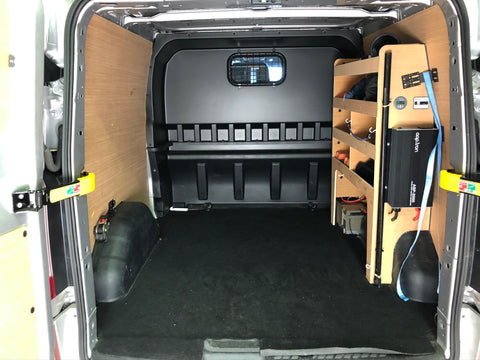

  12V 2000W Inverter – Exclusive to Intellitec

This is a state-of-the-art DC to AC pure sine wave power inverter which enables power from the vehicle leisure battery (DC) to be converted to power to be able to charge the tools (AC)

With advanced digital signal processing technology, the power inverter has multiple functions such as power turbo mode, power saving mode, adjustable output voltage / frequency, fan speed control etc. and is very competitively priced. The remote also has a smart feature to auto turn the inverter off when the vehicle ignition is turned off.
 Battery to Battery Charger

Intellitec DC-DC Battery Charger – Exclusive to Intellitec

This is a brand-new product that has just been launched by Intellitec.  Scafftech are one of the first customers to benefit from this highly efficient and highly reliable product. The DC-DC charger enables power from the vehicle battery to charge up the power to the leisure battery.
As Scafftech vehicle batteries are 12V and the leisure battery is also 12V, this charger has been programmed as a12V to 12V smart 3 stage charger and has an output of 50A. It has a built-in battery rescue (pre-charging) function and lots of other features which makes it an excellent choice. This product also has a Built-in Buck-Boost Converter and can support 24V to 12V & 12V to 24V systems.

It will be launched on our website very soon, watch this space!


Victron Energy 12V/110Ah AGM Deep Cycle Battery

Victron Energy are renowned for their high-quality products, particularly their battery range. We have opted to use the AGM model on this system as the AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters.
  AGM Battery

In these batteries the electrolyte is absorbed into a glass-fibre mat between the plates by capillary action.

The use of high purity materials and lead calcium grids ensure that the battery has particularly low self discharge so that it will not go flat during long periods without charge.

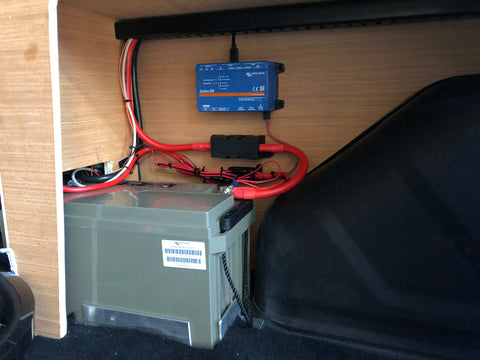

     Victron Energy Cerbo GX

Victron Energy Cerbo GX

The Cerbo GX is the all-new communication-centre from Victron which allows Scafftech to have perfect control over their system from wherever they are and will also maximise the system performance.

    Victron Energy Cerbo GX It is connected via the Victron Remote Management (VRM) Portal, and has added Bluetooth capability allowing Scafftech to monitor remotely from a mobile, tablet or a laptop. solutions in every way.

Victron Energy Battery Monitor BMV-712 Smart

The essential function of a battery monitor is a visual guide to check the performance of your battery. It will calculate ampere hours consumed and the state of charge of a battery and has a number of different functions such as programmable relay, to turn off non critical loads.
The BMV 712 Smart has a built in Bluetooth processor enabling wireless communication and you are able to monitor remotely from your mobile or tablet.
