iConnex Pro

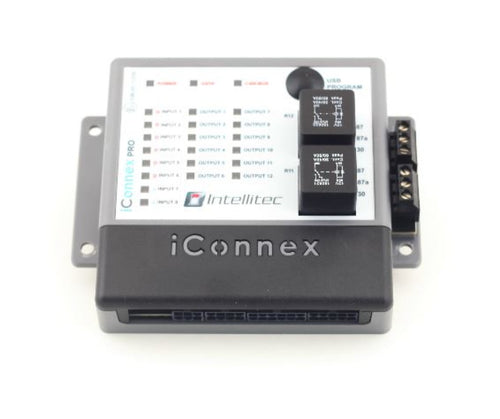

iConnex Dual Voltage Programmable Switching Module

SKU: icxpro

Stock: In Stock

Brand: Intellitec

Regular price £297.00 Sale (£356.40 inc VAT)

•  9 x 8A Positive FET outputs plus one 1A negative output
•  2 x 30A Dry-contacts relay outputs (standard automotive)
•  6 x Hardwired Inputs (programmable as high or low)
•  2 x Battery Sense Inputs (Chassis & Auxiliary)
•  Temperature Sense Input
•  Vehicle CAN input
•  Low voltage protection on each output (programmable)
•  Module status indication LEDs for both inputs & outputs
•  Inputs and Outputs expandable (addition of slave modules)
•  Keypad options include waterproof 3, 4, and 6-way, plus DIN OLED display option
•  Multipoint switching option (up to 5 switch panels into one module)
•  Keypad search & function LED illumination
•  Keypad multi-coloured RGB LED for battery voltage status (programmable to customer requirements)
•  Compact lightweight enclosure L135 x W165 x H49 mm ( 367g)



Save time, improve build quality and increase electrical system specification and control with the Intellitec  iConnex control module. As well as being the perfect low cost control and switching solution for many types of vehicle applications and conversions, including works vans, welfare vans, campervans and blue light emergency service vehicles, iConnex will reduce vehicle downtime caused by electrical system failures.

The unique iConnex module is a dual voltage (12V/24V) system that provides both electronic and relay outputs, coupled with many programmable hardwired and CAN controlled switch panel input options. Also included are temperature sensing, low battery voltage sense (2 x batteries Chassis / Aux), plus vehicle CAN interface options.

All inputs and outputs, plus switch panel configurations are fully programmable via the user friendly Intellitec GUI software tool (graphical user interface) .
